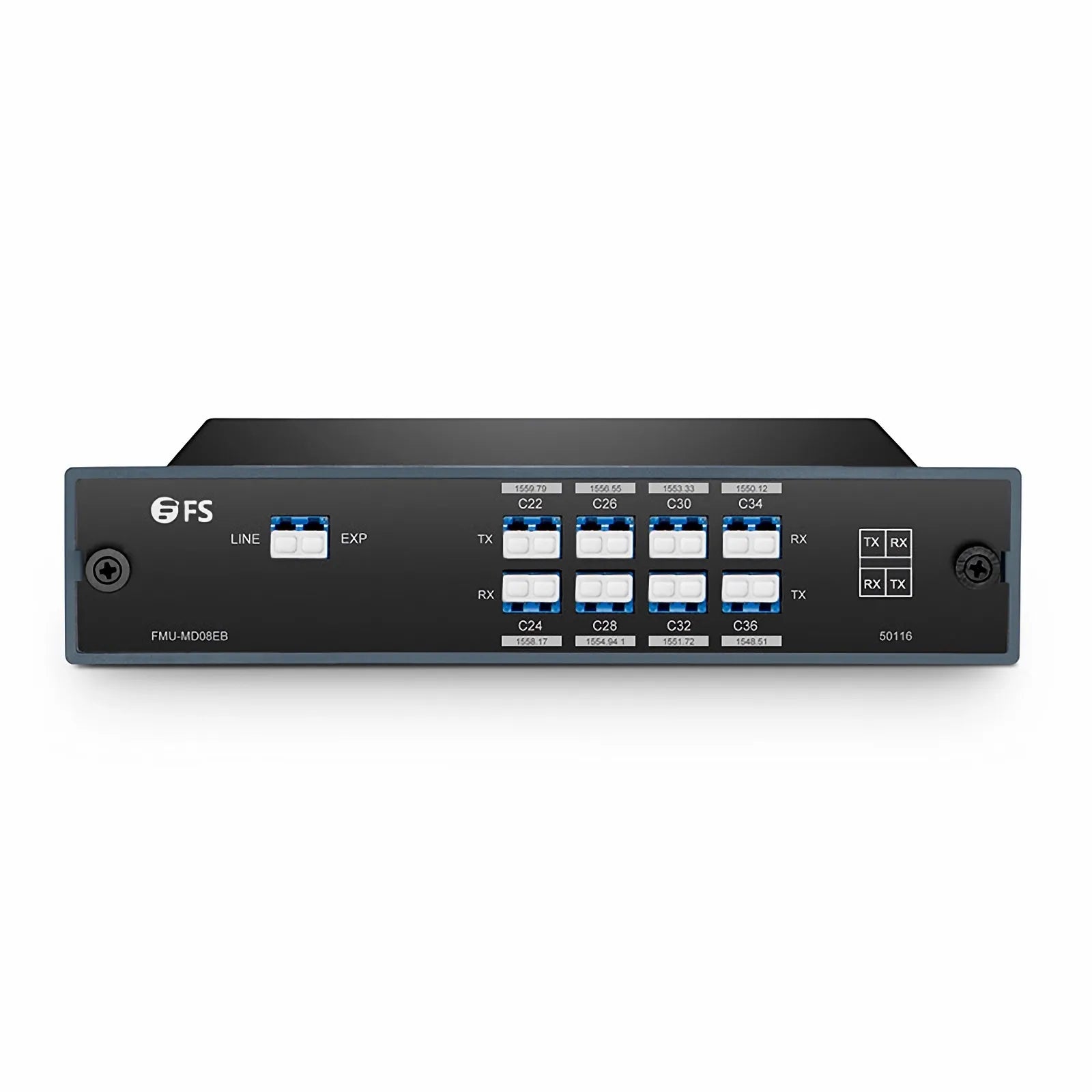

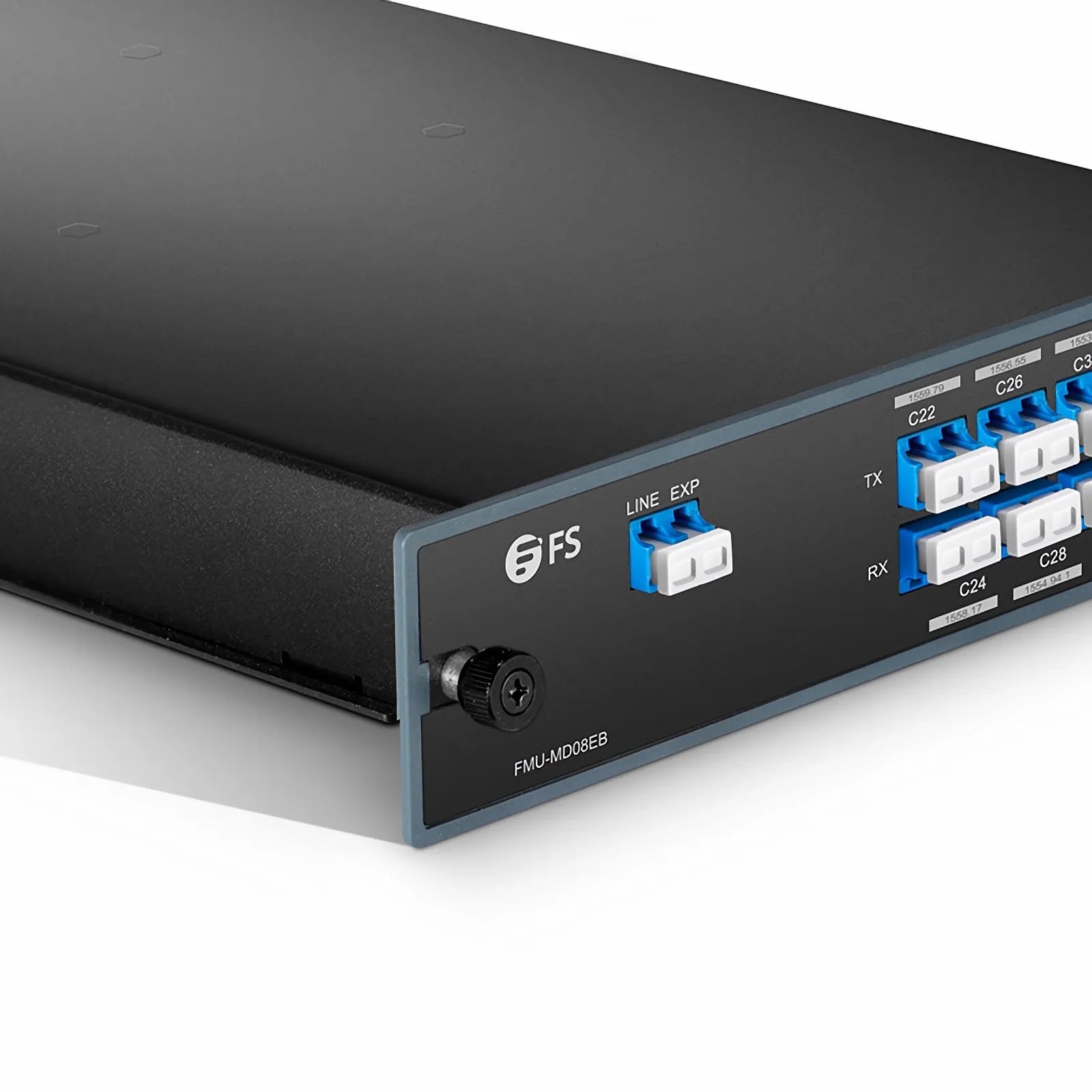

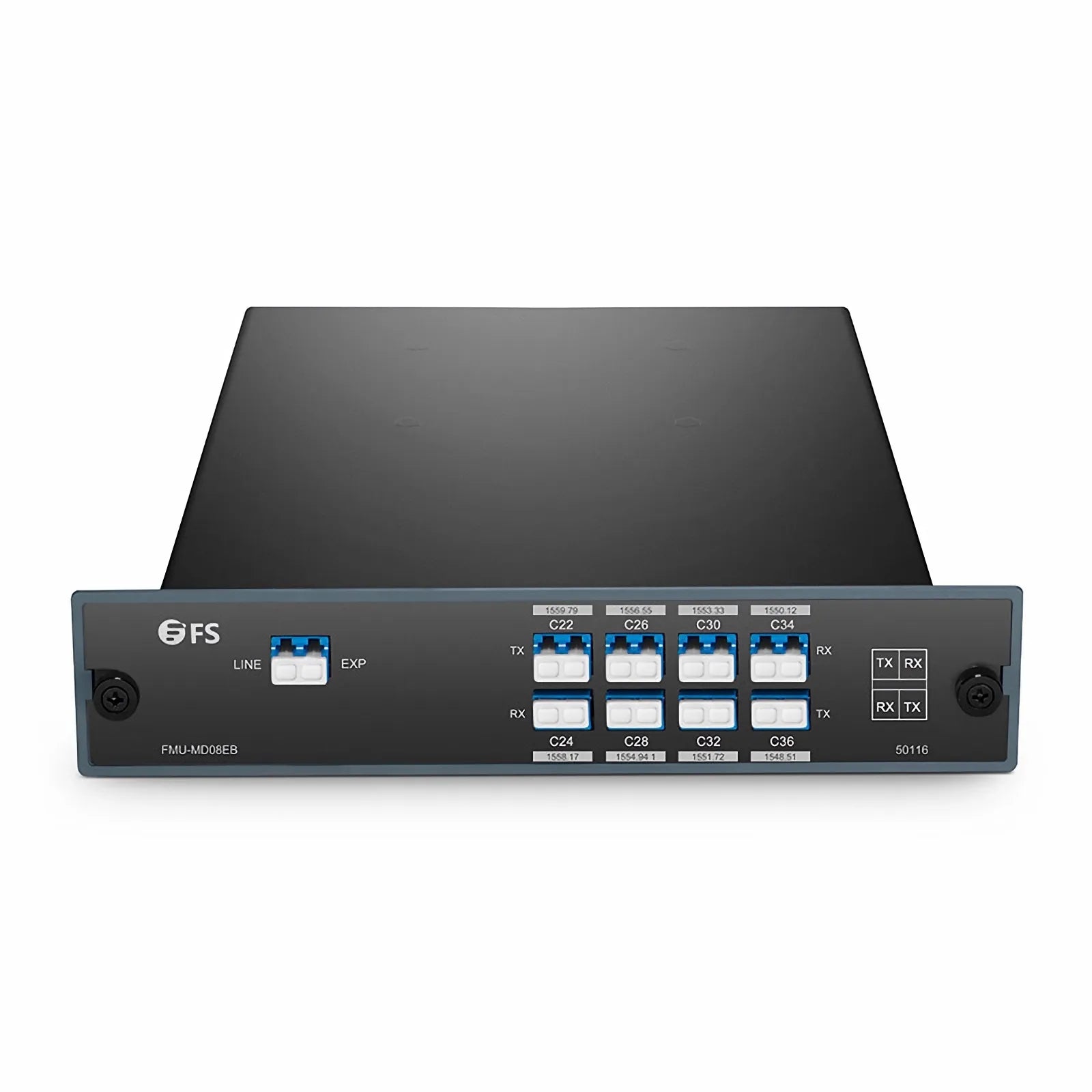

8 Channels DWDM Mux Demux, 100GHz C22-C36, with Expansion Port, 4.2dB Typical IL, LC/UPC, Single Fiber, Side-B, FMU Plug-in Module
8 Channels DWDM Mux Demux, 100GHz C22-C36, with Expansion Port, 4.2dB Typical IL, LC/UPC, Single Fiber, Side-B, FMU Plug-in Module
ISO 14001:2015
ISO 45001:2018
ISO 9001:2015

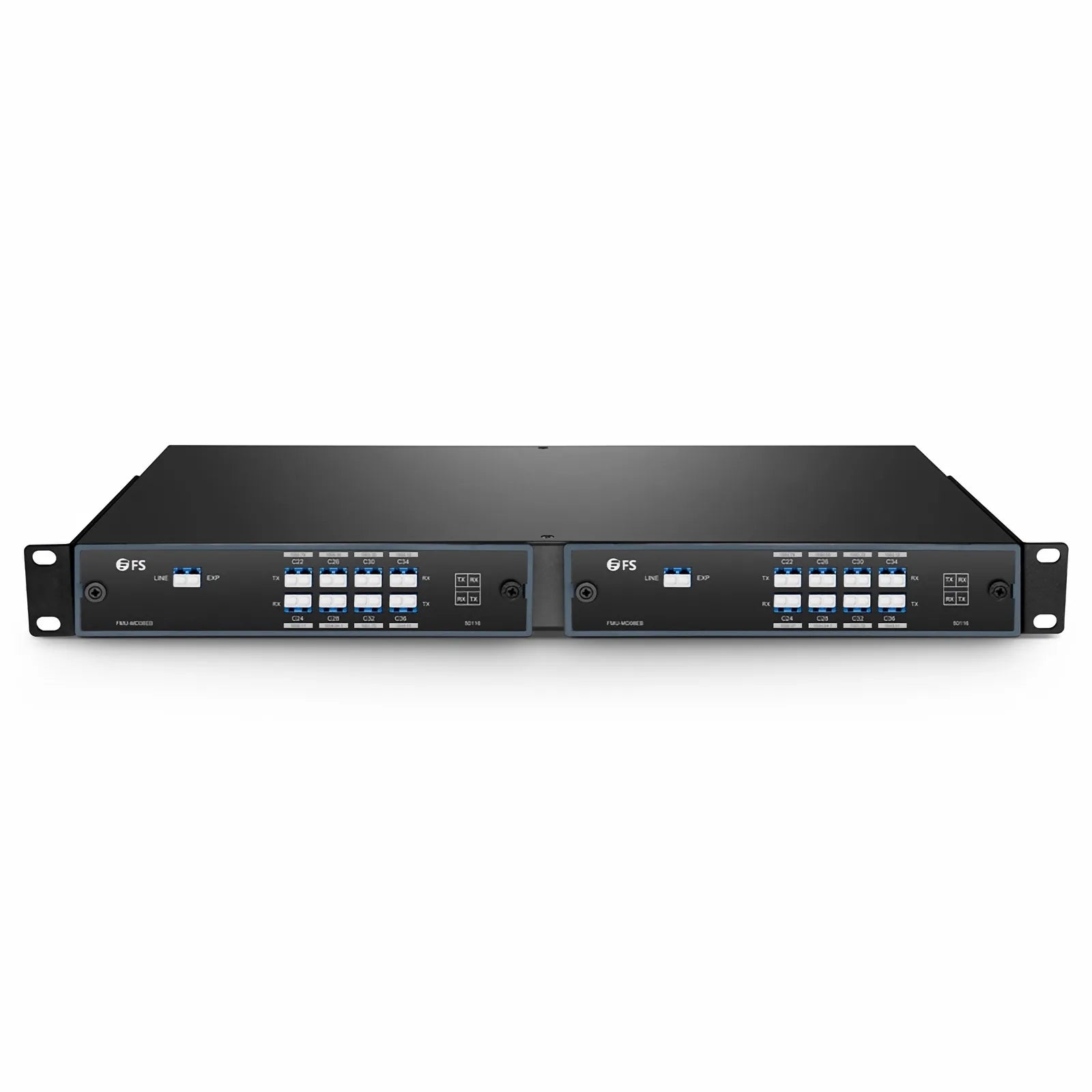

The 8CH Mux Demux, based on TFF (Thin Film Filter), is a passive DWDM device featuring high density, low loss, and long-haul transmission suitability. It features an expansion port can be used to add additional channels, providing a cost-effective and easily expandable solution. In addition, this unit can act as either a multiplexer or de-multiplexer (Mux/Demux). It combines 8-channel of DWDM wavelengths into a composite signal and separates the combined DWDM signal into 8-channel individual wavelengths over a single-mode optical fiber. In accordance with the ITU-T G.694.1, it maximizes the capacity of the C-band range. Designed for maximum configuration flexibility, the DWDM Mux Demux can plug directly into the FMU chassis, each module occupying one slot. Moreover, because single fiber Mux/Demux is always used in pairs, this device needs to be used in conjunction with the FMU-MD08EA.
Enterprise Grade Performance
Enterprise Grade Performance
Our networking cables and optical transceivers are designed for high-performance enterprise networks. They support fast data transmission, stable connectivity, and consistent signal strength across switches, servers, and routers.
Wide Device Compatibility
Wide Device Compatibility
These modules are engineered to work with many leading networking brands such as Cisco, Juniper, Arista, and other enterprise systems. They integrate easily into existing network infrastructure.
Simple Plug And Play Setup
Simple Plug And Play Setup
Installation is quick and easy. Simply insert the cable or transceiver into the compatible port and it begins operating immediately without complicated configuration.
Reliable Connection Stability
Tested And Verified Products
Affordable Enterprise Pricing
Competitive Pricing
Refurb Squared networking hardware delivers high-speed connectivity using tested optical modules and enterprise-grade cables built for reliability and seamless device compatibility.
