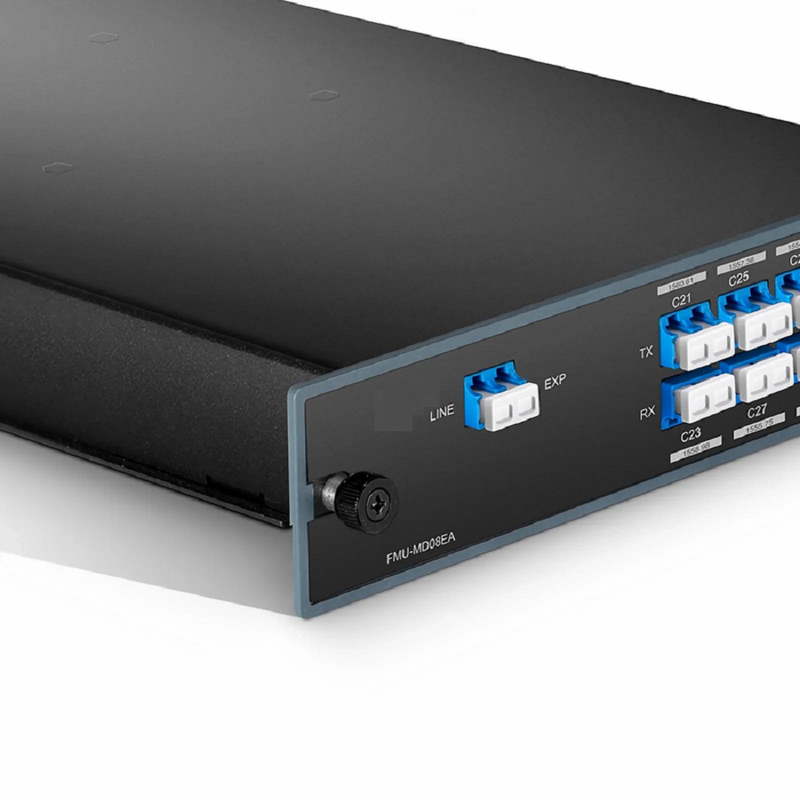

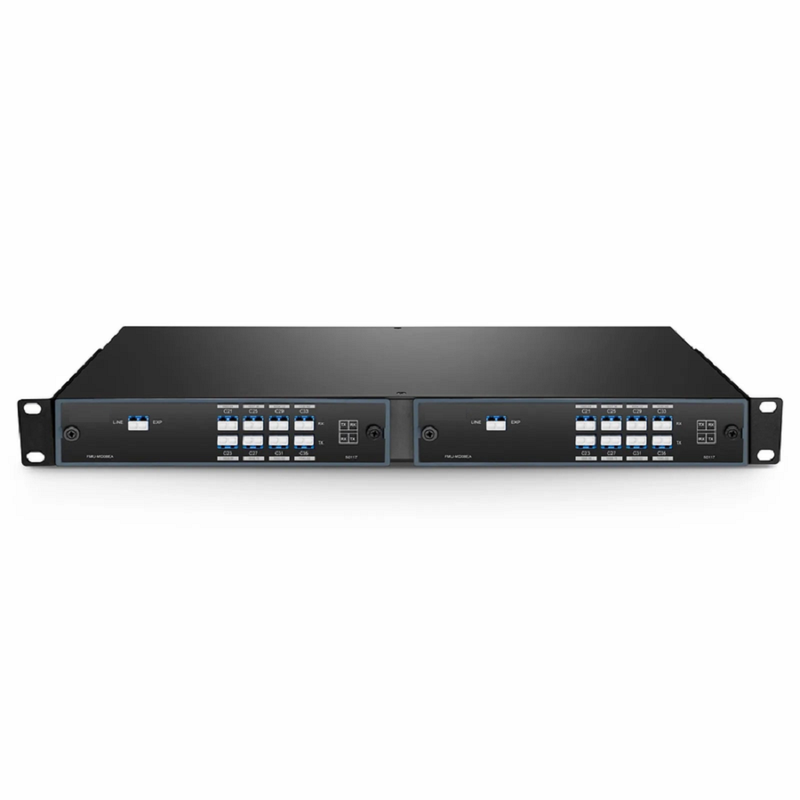

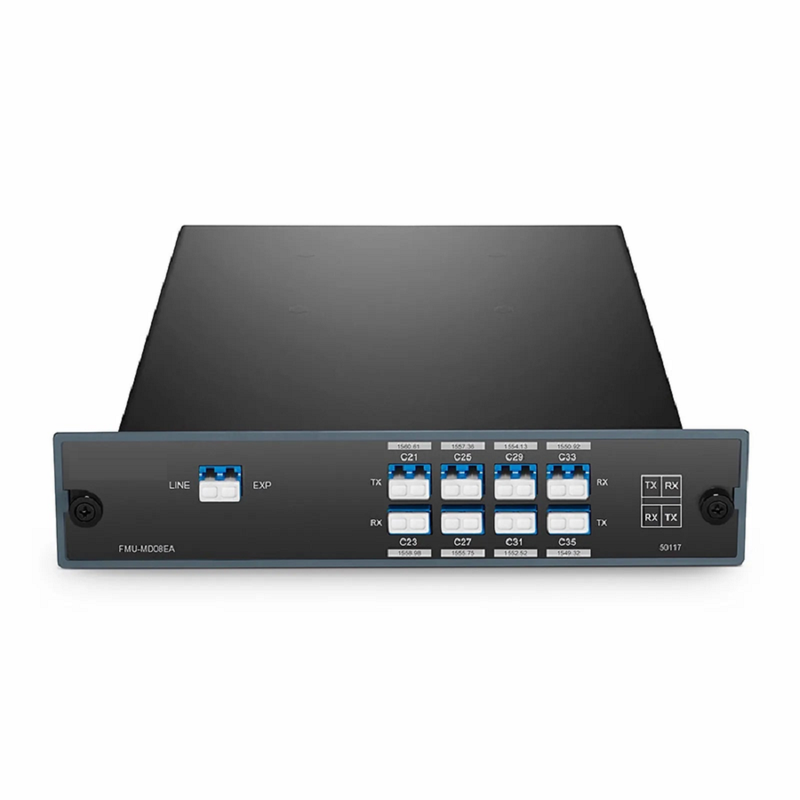

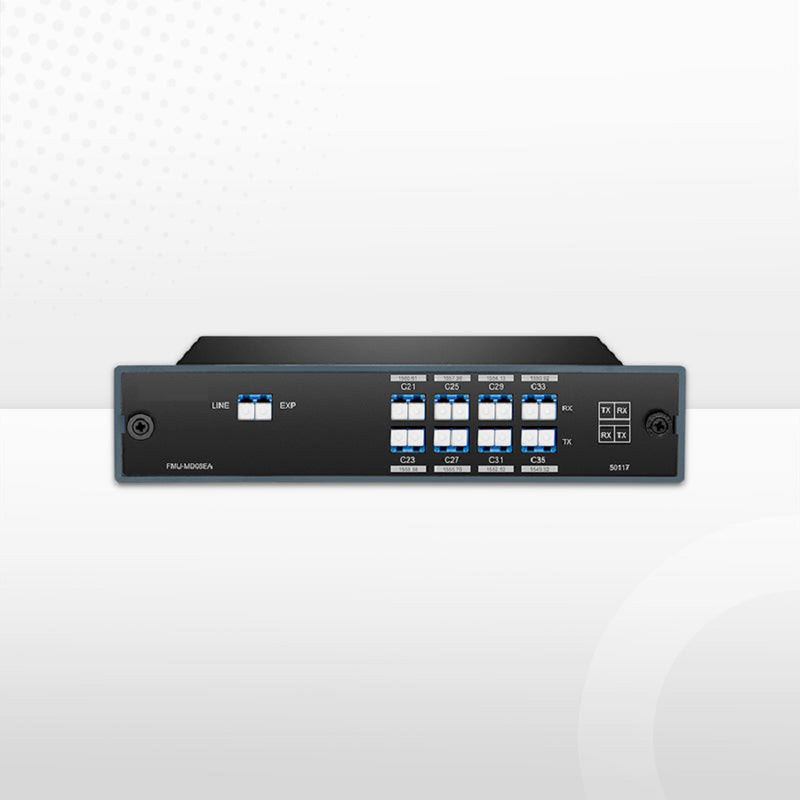

Refurb Squared 8 Channels CWDM Mux Demux, 1470-1610nm, with Monitor and Expansion Port, 2.0dB Typical IL, LC/UPC, Dual Fiber, FMU Plug-in Module

Description

Refurb Squared delivers fully tested, OEM-compatible optical transceivers, DWDM/CWDM systems, media converters and DAC/AOC cables — coded for Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet platforms, with lifetime warranty and fast global delivery.

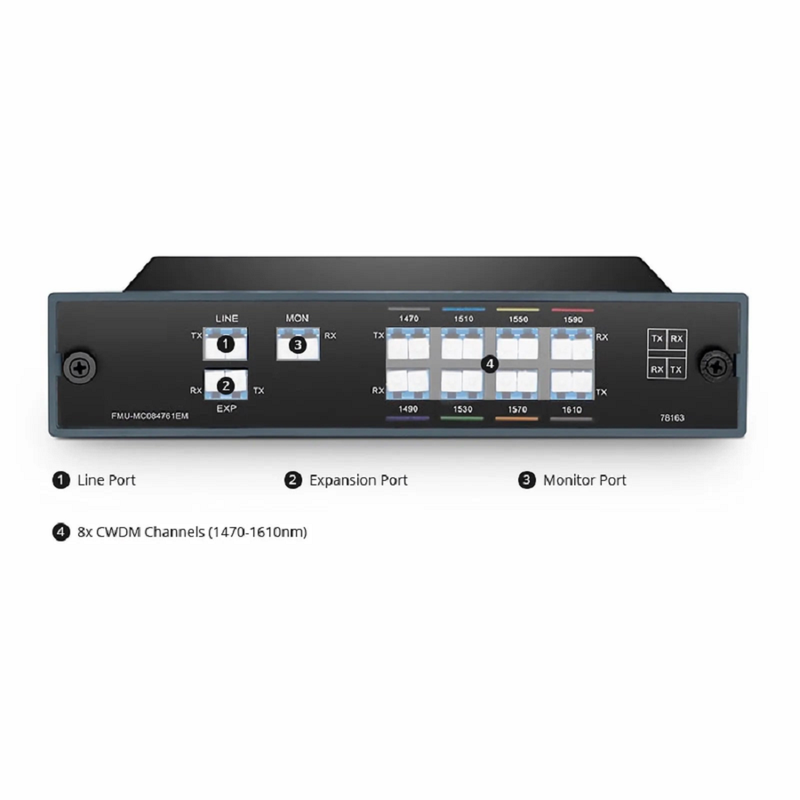

The 8CH Mux Demux based on Free Space technology, is a passive CWDM device featuring low loss and short-haul transmission suitability. It integrates a monitor port for easy troubleshooting without downtime and an expansion port to add channels, supporting a hybrid C/DWDM system via 1530 nm/1550 nm CWDM channels for expanded DWDM capacity. In addition, this unit can act as a Mux or Demux, combining 8 CWDM wavelengths into a composite signal and separating them over a pair of single-mode optical fiber. In accordance with the ITU-T G.694.2, it maximizes the capacity of the C-band range. Designed for maximum configuration flexibility, the CWDM Mux Demux can plug directly into the FMU chassis and occupies one slot.

Refurb Squared is brand of OEM-compatible optical networking products, including SFP, SFP+, QSFP+, QSFP28 and QSFP-DD transceivers, DWDM/CWDM systems, media converters, and DAC/AOC cables. Every module is 100% pre-shipment tested and coded for seamless compatibility with major platforms such as Cisco, Huawei, Juniper, Arista, HPE, Dell, Nokia and Fortinet — backed by a lifetime warranty, fast global delivery, and dedicated technical support for data centers, telecom operators, enterprise networks and system integrators worldwide.
